Electric Storage Water Heater 40L – S2
Electric Storage Water Heater for Reliable Hot Water Supply
- Smart Butler, learns usage for efficient hot water
- Gradient heating, fast hot-water recovery
-
Magnesium anode, long-lasting corrosion protection
-
Power-Off, instant safety on water flow
-
Smart WiFi, App, remote, panel control
-
Safety protection, multi-level safeguards
-
Curved design, elegant PMMA aluminum frame
OEM/ODM Available
Description
Experience reliable, Electric Storage Water Heater with Piano’s patented heating technology.
Piano’s electric water heater combines intelligent engineering with advanced safety and refined design. Its gradient heating system uses four-point sensing to drive the heating elements in stages, ensuring uniform heating without dead zones and enabling fast hot-water recovery. The electronic magnesium anode provides clean, long-lasting corrosion protection for the tank, while a flow-triggered power-off mechanism enhances safety by cutting electricity the moment hot water is detected at the outlet. With WiFi smart control, wireless remote operation, and an intuitive onboard interface, users enjoy flexible and convenient control options. A multi-layer safety system guards against overheating, dry burning, overpressure, and electrical risks. Finished with a curved PMMA panel and an aluminum-alloy frame, the unit delivers both high performance and a premium aesthetic that elevates any modern bathroom.
Technical Specifications
| Rated Power | 5kW |
| Rated Voltage | 220V-240V 50/60Hz 1Phase |
| Rated Pressure | 0.7MPa |
| Rated Current | 22.7A |
| Rated Capacity | 40L |
| Heating Element | Dual-coil Ingle 840 |
| Housing Process | Curved Surface PMMA Aluminum Alloy |
| Inner Liner Material | Enamel Steel |
| Display Mode | LED Digital Temperature |
| Temperature Range | ≤80°C |
| Output Efficiency | 95% |
| Waterproofing Grade | IPX4 |
| Wire Requirement | 3*2.5mm² |
| Air Switch Requirement | 40A |
| Product N.W. | 25kg |

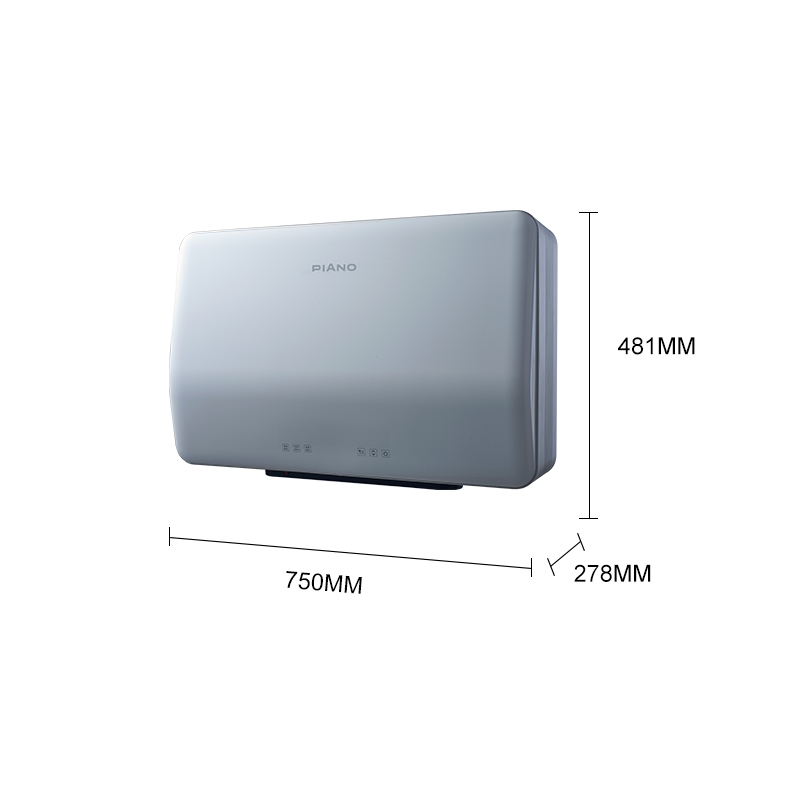

| Product Size | 750*481*278 mm (L.W.H.) |
| Mounting Type | Wall Mount |
| Color Options | Searock Grey / Customizable |
Applications
- Residential Homes
- Hotels & Resorts
- Fitness & Sports Facilities
- Healthcare & Wellness
- Educational Institutions
- Commercial Offices & Co-Working Spaces
- Industrial & Manufacturing Facilities
- Restaurants & Cafeterias
- Renovation & Retrofit Projects
- Real Estate Projects
OEM/ODM services
Piano provides full OEM/ODM support including design customization, heating core technology sharing, and flexible branding options. We welcome global distributors and project partners to build long-term cooperation.
