Electric Storage Water Heater 40L – S5

Electric Storage Water Heater for Kitchen and Bathroom

  • Gradient heating, fast hot-water recovery
  • Magnesium anode, long-lasting corrosion protection

  • Power-Off, instant safety on water flow

  • Smart WiFi, App, remote, panel control

  • Safety protection, multi-level safeguards

  • Curved design, elegant PMMA aluminum frame

OEM/ODM Available

Experience reliable, Electric Storage Water Heater with Piano’s patented heating technology.

Piano’s electric water heater combines intelligent engineering with advanced safety and refined design. Its gradient heating system uses four-point sensing to drive the heating elements in stages, ensuring uniform heating without dead zones and enabling fast hot-water recovery. The electronic magnesium anode provides clean, long-lasting corrosion protection for the tank, while a flow-triggered power-off mechanism enhances safety by cutting electricity the moment hot water is detected at the outlet. With WiFi smart control, wireless remote operation, and an intuitive onboard interface, users enjoy flexible and convenient control options. A multi-layer safety system guards against overheating, dry burning, overpressure, and electrical risks. Finished with a curved PMMA panel and an aluminum-alloy frame, the unit delivers both high performance and a premium aesthetic that elevates any modern bathroom.

Technical Specifications

Rated Power5kW / 6.5kW
Rated Voltage220V-240V    50/60Hz    1Phase
Rated Pressure0.7MPa
Rated Current22.7A / 29.5A
Rated Capacity40L
Heating ElementDual-coil Ingle 840
Housing ProcessCurved Surface PMMA Aluminum Alloy
Inner Liner MaterialEnamel Steel
Display ModeLED Digital Temperature
Temperature Range≤80°C
Output Efficiency95%
Waterproofing GradeIPX4
Wire Requirement3*2.5mm² / 3*4mm²
Air Switch Requirement40A
Product N.W.16kg / 16.5kg

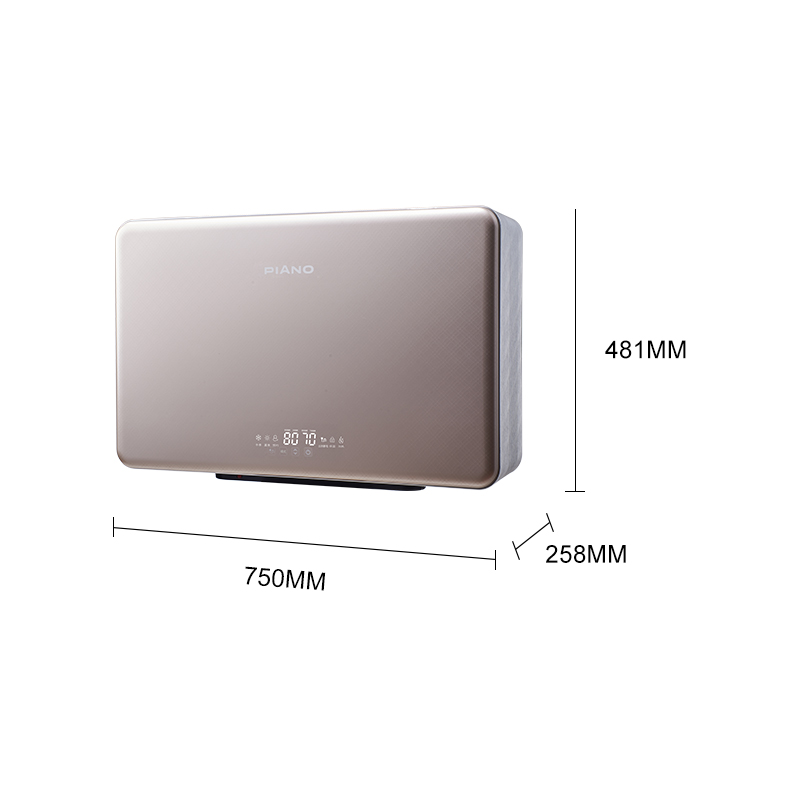

Product Size750*481*258 mm (L.W.H.)
Mounting TypeWall Mount
Color OptionsKesimi Golden / Customizable



Applications

  • Residential Homes
  • Hotels & Resorts
  • Fitness & Sports Facilities
  • Healthcare & Wellness
  • Educational Institutions
  • Commercial Offices & Co-Working Spaces
  • Industrial & Manufacturing Facilities
  • Restaurants & Cafeterias
  • Renovation & Retrofit Projects
  • Real Estate Projects

OEM/ODM services

Piano provides full OEM/ODM support including design customization, heating core technology sharing, and flexible branding options. We welcome global distributors and project partners to build long-term cooperation.
