Electric Storage Water Heater 33L – D1
Electric Storage Water Heater for Reliable Hot Water Supply
-
Custom 5500W dual-coil rapid heating
-
Vertical design, 97% hot water efficiency
-
High energy efficiency, anti-freeze built-in
-
Isolation wall and dual-level dry-run protection
-
Self-diagnostic fault detection system
-
FEROO blue ceramic, 8+ year lifespan
-
Electrostatic spray finish, anti-rust protection
OEM/ODM Available
Description
Experience reliable, Electric Storage Water Heater with Piano’s patented heating technology.
Piano’s electric storage water heater is engineered for durability, efficiency, and long-lasting performance. The enamel-lined tank is made from specialty steel and coated with imported FEROO ceramic powder, providing exceptional resistance to pressure, scale, corrosion, and high temperatures. A 50mm seamless high-density insulation layer ensures excellent heat retention with minimal temperature loss. The Ingle 840 heating element delivers fast, high-efficiency heating with strong resistance to oxidation and corrosion, while the gradient heating mode warms the tank evenly without dead zones, allowing rapid hot-water recovery. An electronic magnesium anode offers clean, residue-free corrosion protection for extended tank life. With an intelligent control system that learns usage habits and adapts to user needs, the heater provides a stable, reliable, and comfortable hot-water experience.
Technical Specifications
| Rated Power | 3.3kW / 5.5kW |
| Rated Voltage | 220V-240V 50/60Hz 1Phase |
| Rated Pressure | 0.7MPa |
| Rated Current | 15A / 25A |
| Rated Capacity | 33L |
| Heating Element | Dual-coil Ingle 840 |
| Housing Process | Electrostatic Spraying Electrophoresis |
| Inner Liner Material | Enamel Steel |
| Display Mode | LED Digital Temperature |
| Temperature Range | ≤80°C |
| Output Efficiency | 97% |
| Waterproofing Grade | IPX4 |
| Wire Requirement | 3*1.5mm² / 3*2.5mm² |
| Air Switch Requirement | 16A / 40A |
| Product N.W. | 16kg / 16.5kg |

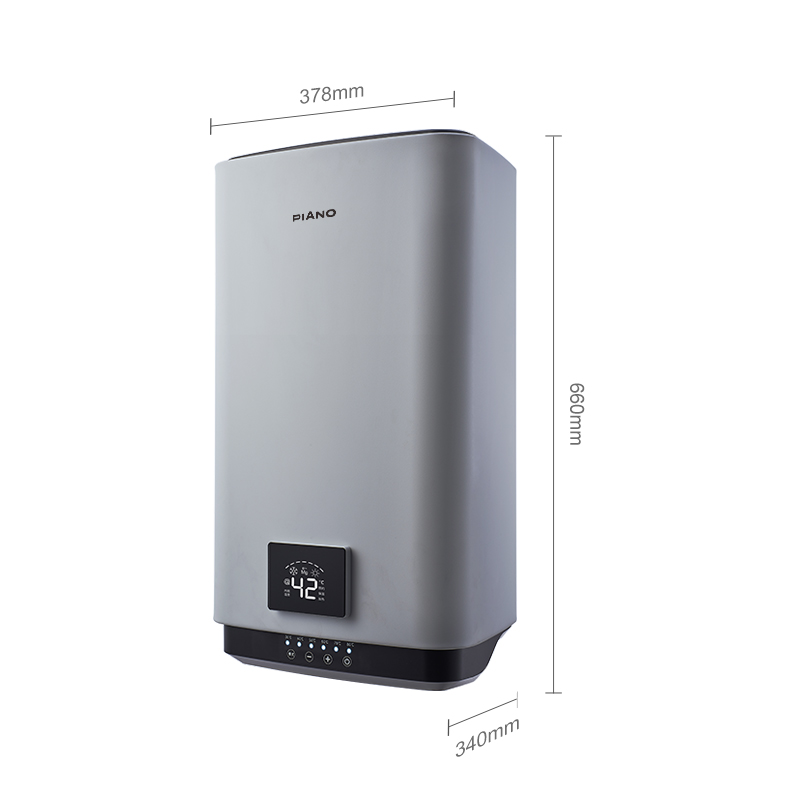

| Product Size | 660*378*340 mm (L.W.H.) |
| Mounting Type | Wall Mount |
| Color Options | Tech Gray / Customizable |
Applications
- Residential Homes
- Hotels & Resorts
- Fitness & Sports Facilities
- Healthcare & Wellness
- Educational Institutions
- Commercial Offices & Co-Working Spaces
- Industrial & Manufacturing Facilities
- Restaurants & Cafeterias
- Renovation & Retrofit Projects
- Real Estate Projects
OEM/ODM services
Piano provides full OEM/ODM support including design customization, heating core technology sharing, and flexible branding options. We welcome global distributors and project partners to build long-term cooperation.
