Wall-mounted Electric Boiler 8kW – PAN8A2
Wall-mounted Electric Boiler for Complete Home Heating
- Enclosed design, simple operation, long service life up to 15 years
- Segmented temperature control for energy savings
- Power-off memory restores previous settings automatically
- Thermal conversion efficiency exceeds 98%, thermal utilization 100%
- Intelligent anti-freeze protection at 5°C
- Triple leakage and water-pressure safety protection
Configuration: Integrated waterway, Expansion Tank, Shielded Water Pump, Intelligent Circuit Control Board
OEM/ODM Available
Description
Experience reliable, Wall-mounted Electric Boiler with Piano’s patented heating technology.
Piano’s electric boiler combines five core technologies for clean, efficient, and reliable heating. With 98% heat conversion, digital temperature control, and cloud-heating water-electricity separation, it delivers stable, energy-saving performance. Dual-energy support allows integration with photovoltaic panels for greener, cost-effective heating. Built-in safety protections, corrosion-resistant elements, and microcomputer controls ensure long life, easy operation, and low-maintenance reliability.
Technical Specifications
| Item | Specification |
|---|---|
| Rated Power | 8kW |
| Rated Voltage | 220V-240V 50/60Hz 1Phase |
| System Pressure | ≤ 0.3MPa |

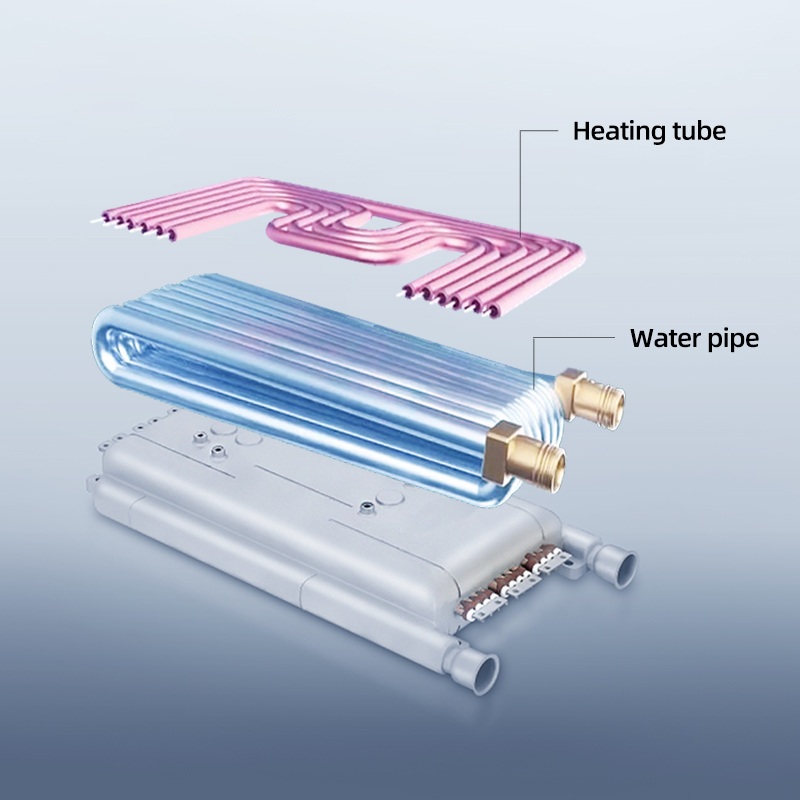

| Heating Element | Patented Cast Aluminum |
| Housing Material | High-Quality Aluminum Alloy |
| Control Mode | Touch Screen |
| Display Mode | LED Digital Temperature |
| Temperature Range | 25-60°C |
| Waterproofing Grade | IPX4 |
| Wire Requirement | 3*4mm² |
| Applying Space | 50-100m² |
| Pipe Diameter | DN20 Male Thread (4.4L/min at 25°C rise) |
| Pump Head | 6 meters |

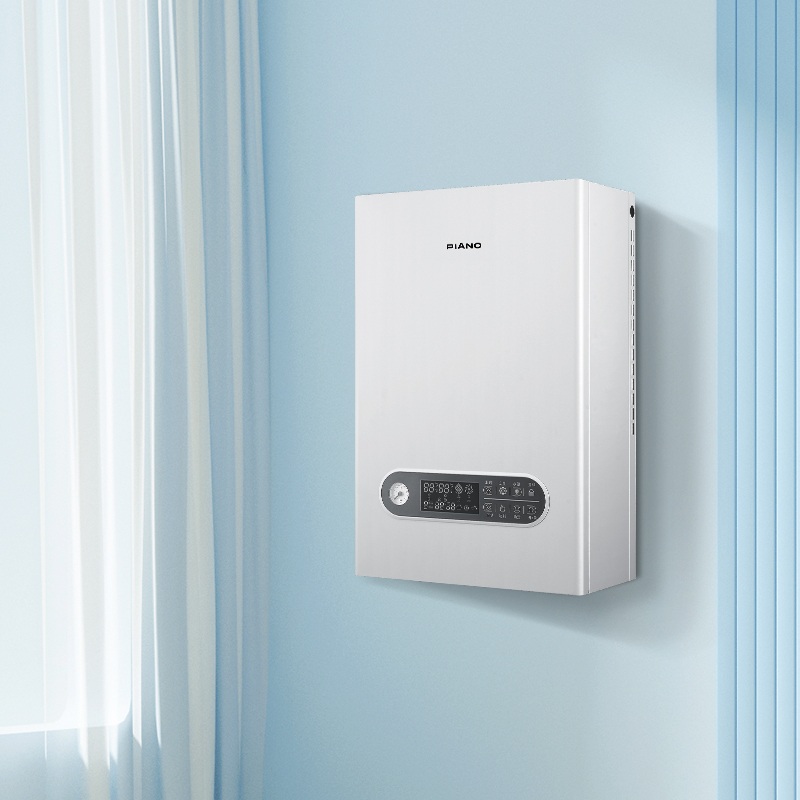

| Mounting Type | Wall-Mounted (Vertical) |

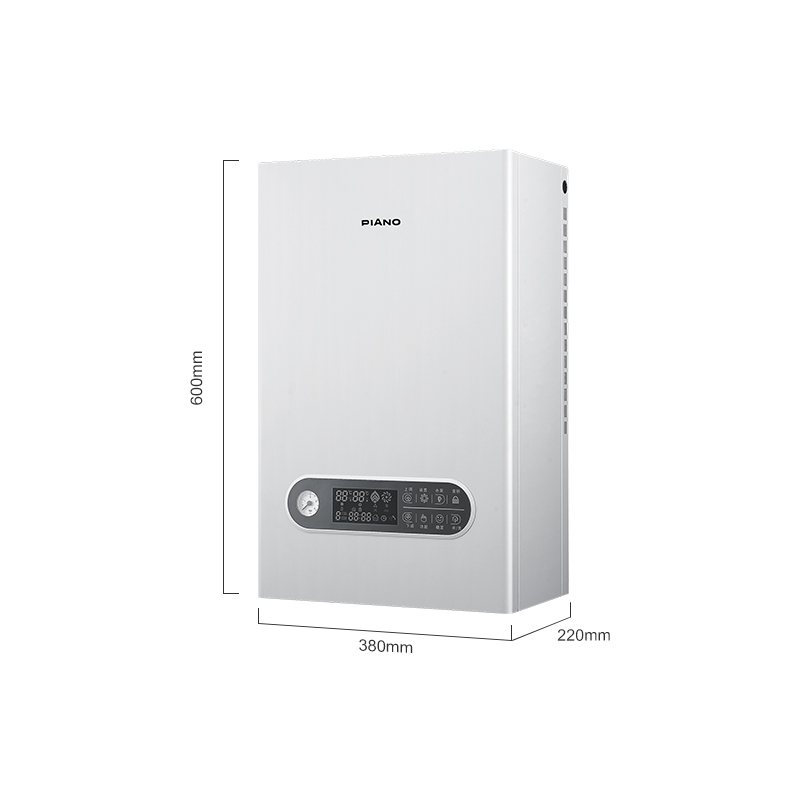

| Product Size | 380*220*600mm |
| Color Options | Simple White / Customizable |
Applications
- Residential Heating
- Commercial Buildings
- Hospitality & Accommodation
- Educational Institutions
- Industrial & Manufacturing Zones
- Healthcare & Public Facilities
- Rural & Off-grid Areas
OEM/ODM services
Piano provides full OEM/ODM support including design customization, heating core technology sharing, and flexible branding options. We welcome global distributors and project partners to build long-term cooperation.
